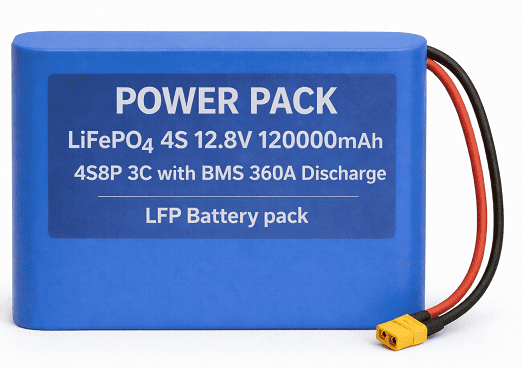

Power pack LiFePo4 4S 12.8V 120000mAh 4S8P 3C with BMS 360A Discharge LFP Battery pack

26,033.90 Price Excluding Tax

Specification Details
Battery Chemistry LiFePO4 (Lithium Iron Phosphate)
Configuration 4S8P
Nominal Voltage 12.8V
Nominal Capacity 120Ah (120,000mAh)
Energy Storage Capacity Approx. 1536Wh
Charge Voltage 14.6V
Recommended Charge Current 30–50A
Max Charge Current 80A
Continuous Discharge Current 360A
Peak Discharge Current (5–10 sec) 450A
Cycle Life 3000–6000 cycles
Self Discharge <2% per month
Cell Type Grade-A Prismatic / Cylindrical (based on availability)
BMS Type Smart Bluetooth Active Balancing BMS (optional app)
Operating Temperature Range -20°C to +60°C
Storage Temperature Range -10°C to +45°C
Weight 8.0kg – 9.2kg (varies with casing)
Size (L × W × H) Approx. 275 × 180 × 205 mm

200 in stock (can be backordered)

Description

Power pack LiFePo4 4S 12.8V 120000mAh 4S8P 3C with BMS 360A Discharge LFP Battery pack

The 12.8V 120000mAh LiFePO4 Power Pack is engineered for applications that demand reliability, high energy density, strong discharge capability, and long service life. Built using Grade-A Lithium Iron Phosphate cells, this battery pack ensures exceptional stability, enhanced thermal safety, and long-term durability even under harsh conditions.

Equipped with a Smart 360A BMS (Battery Management System), the unit actively manages cell balancing, temperature monitoring, and protection against overcharge, over-discharge, overcurrent, and short circuits. This ensures optimal performance for both high-load and continuous use scenarios.

Designed for off-grid power systems, electric mobility solutions, deep-cycle backup power, and heavy-duty industrial energy storage, this pack delivers a reliable alternative to lead-acid, AGM, and NMC battery technologies — with up to 10x longer lifespan and 3x faster charging capability.

⭐ Key Advantages

  • Ultra-High Energy Output: Provides over 1.5kWh of usable energy for long runtimes.

  • Longer Cycle Life: Rated for 3000–6000 charge cycles, significantly reducing replacement frequency.

  • Fast Charging: Compatible with high-current DC chargers and MPPT solar controllers.

  • High Power Delivery: Capable of supporting continuous loads up to 360A and peak loads up to 450A.

  • Lightweight Construction: Weighs up to 70% less than traditional lead-acid batteries of similar capacity.

  • Superior Safety: Uses LiFePO4 chemistry — known for its thermal stability, non-toxicity, and non-explosive performance.

🧰 Build Quality Components

Component Material
Cell Support & Base FR4 / Epoxy Board
Wiring High-Temperature Flexible Silicone Wire
Insulation Kapton + Nomex layered safety
Protection System Smart Active-Balance BMS
External Finish Industrial-grade PVC heat shrink (standard)

🚀 Application Compatibility

Application Type Suitable
Solar Energy Storage ⭐⭐⭐⭐⭐
Home Power Backup/Inverter ⭐⭐⭐⭐⭐
Electric Vehicles & Mobility ⭐⭐⭐⭐⭐
Robotics & Automation ⭐⭐⭐⭐⭐
Boats & Marine Power ⭐⭐⭐⭐⭐
Golf Cart, Scooter, ATV ⭐⭐⭐⭐⭐
UPS and Server Backup ⭐⭐⭐⭐⭐
Portable Power Stations ⭐⭐⭐⭐⭐

Additional information

Weight 1650 g
