Description

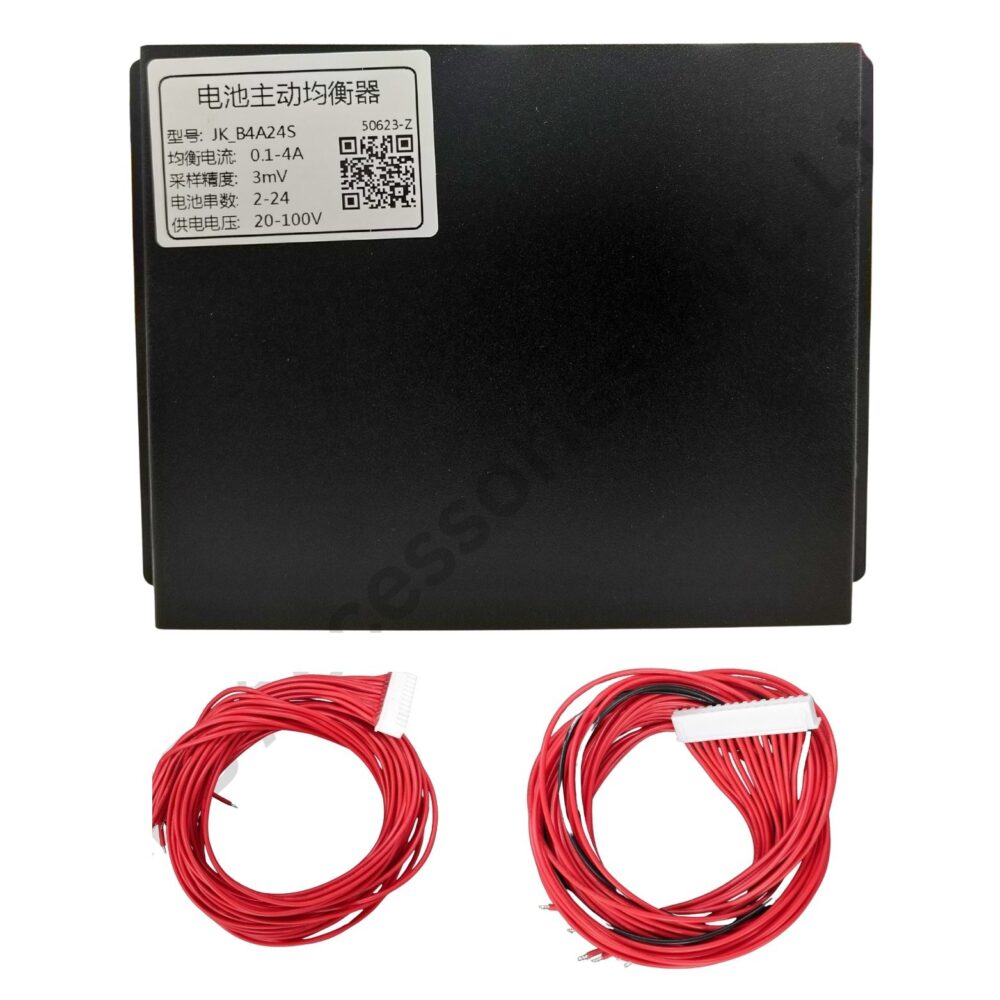

JK SMART ACTIVE BALANCER 24S 4A – Model: JK-B4A24S (BE59)
The JK Smart Active Balancer 24S 4A (JK-B4A24S BE59) is a high-performance 4A active balancing module designed to optimize large lithium battery packs up to 24 series cells. With powerful bidirectional energy transfer, it redistributes energy between high and low cells with exceptional speed and precision—far more effective than passive balancing.
This balancer supports multiple chemistries including LiFePO4 (LFP), Li-ion (NMC/NCA), and LTO, making it ideal for a wide range of custom and professional battery systems. With Bluetooth monitoring, users can view real-time balancing activity, cell voltage data, statistics, and fault logs directly from their smartphone.
Perfect for 24S high-capacity batteries used in solar power storage, electric vehicles, high-power inverters, and industrial systems.
⭐ Key Features
🔹 Supports 1S–24S Lithium Packs
Compatible with:
-
24S LiFePO4 (76.8V)
-
24S Li-ion (99.6V)
-
24S LTO (57.6V)
Highly flexible for both low-voltage and high-voltage systems.
🔹 Ultra-Fast 4A Active Balancing
-
Balances at up to 4 Amps
-
Bidirectional active balancing
-
Works during charge and discharge
-
Significantly improves pack health
-
Ideal for large battery banks (100Ah–800Ah+)
🔹 Bluetooth Smart Monitoring
Using the JK app, you can monitor:
-
Real-time cell voltages
-
Balance current (up to 4A)
-
Balance start threshold
-
Battery voltage & temperature
-
Individual cell deviation
-
Fault records & system status
🔹 Multi-Chemistry Support
Supports:
-
LiFePO4 (LFP)
-
Li-ion (NMC/NCA)
-
LTO (Lithium Titanate)
Great for custom builders and OEM applications.
🔹 Advanced Safety Protection
Built-in protections:
-
Reverse polarity protection
-
Over-voltage protection
-
Under-voltage protection
-
Over-temperature protection
-
Wiring error detection
Ensures stable and reliable operation.
🔹 Low Power Consumption
Optimized for long-term installation in large battery systems.
🔹 High-Quality Build
-
Industrial-grade components
-
Heavy copper PCB
-
Efficient heat dissipation
-
Long lifecycle design
