Description
Daly BMS NMC 7S 60A is a high-performance Battery Management System designed for 7-cell (7S) Lithium-ion (NMC) battery packs with a nominal voltage of 25.9V. It provides complete protection against overcharge, over-discharge, overcurrent, and short-circuit, ensuring your lithium battery pack operates safely and efficiently.
With a continuous discharge current of 60A, the Daly 7S 60A BMS is ideal for e-bikes, e-scooters, small EVs, power tools, solar energy storage systems, and DIY lithium battery packs. Its cell balancing function maintains equal voltage across all cells, enhancing performance, capacity, and battery life.
Built with premium-grade components, this BMS offers excellent heat management, stable performance, and long-term reliability for demanding 25.9V NMC lithium-ion battery systems.
Key Features:
-
🔋 Battery Type: NMC (Li-ion) 7S, 25.9V nominal
-
⚡ Continuous Discharge Current: 60A
-
🔌 Charge Voltage: 29.4V (Max)
-
🛡️ Protection Functions:
-
Overcharge protection
-
Over-discharge protection
-
Overcurrent protection
-
Short-circuit protection
-
Automatic cell balancing
-
-
🌡️ Operating Temperature: –20°C to +70°C
-
⚙️ Wiring Type: Common port / Separate port (model dependent)
-
💡 Applications: E-bikes, e-scooters, RC vehicles, solar battery packs, and DIY lithium-ion systems
Physical Specifications:
-
📏 Dimensions: Approx. 85mm × 55mm × 12mm
-
⚖️ Weight: Approx. 70g
Package Includes:
-

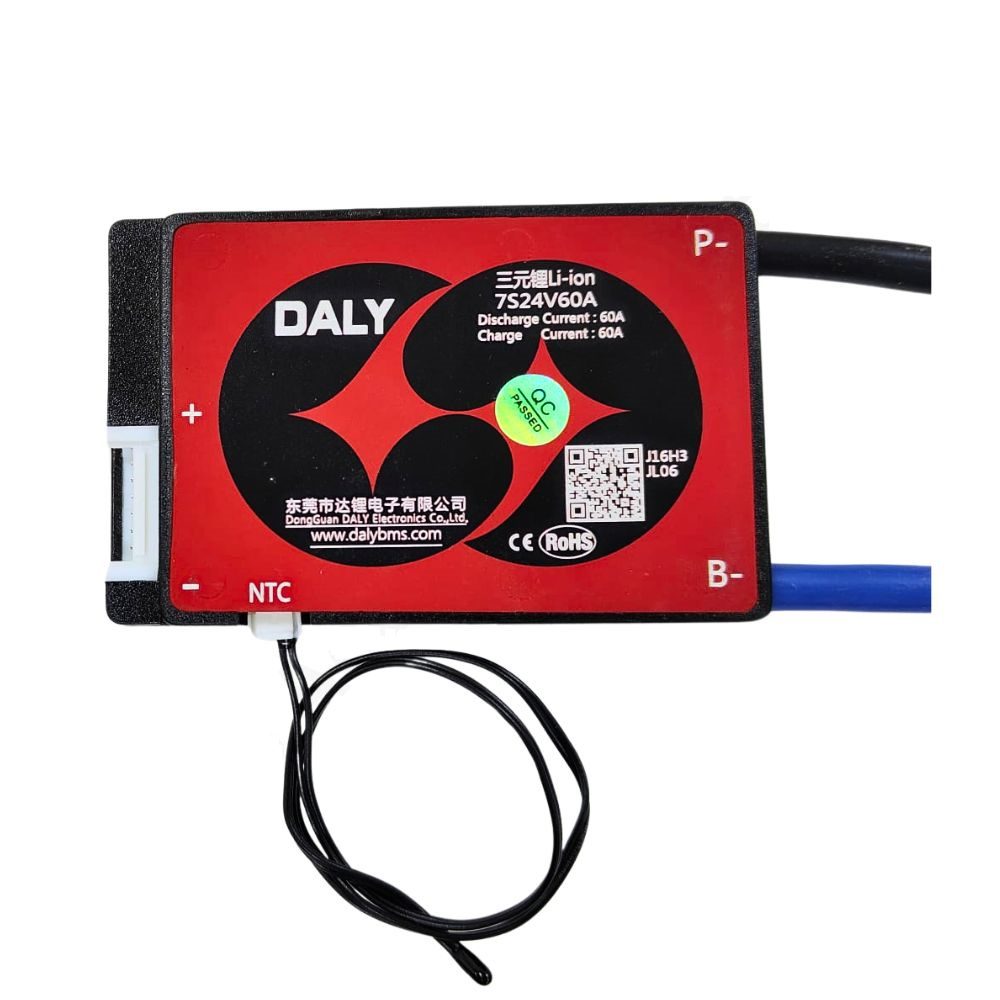

1 × Daly BMS NMC 7S 60A Board
-
1 × Balance Wire Harness
