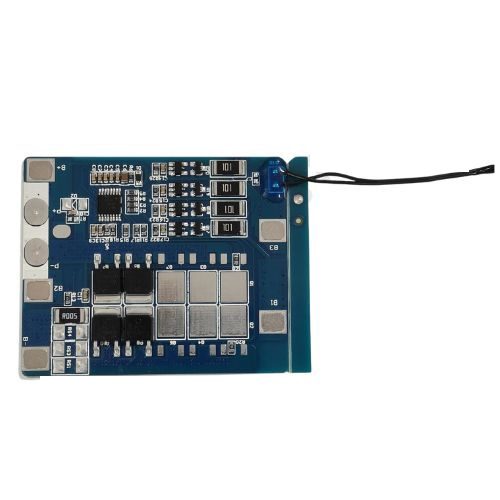

BMS LFP 4S 10A Blue Square – Model: 809D
The BMS LFP 4S 10A Blue Square (809D) is a compact and efficient battery management system designed for 4-series LiFePO4 battery packs. With 10A continuous charge/discharge support, this BMS is ideal for medium-power 12.8V applications such as DIY battery packs, solar energy storage, e-bikes, scooters, and portable electronic devices.
Its Blue Square PCB design ensures improved stability, heat dissipation, and long-term reliability. Equipped with essential voltage and current protection features, this BMS safeguards your battery pack and extends its operational lifespan.
⭐ Key Features
🔹 Supports 4S LiFePO4 Batteries
-
Nominal Voltage: 12.8V
-
Charging Voltage: 14.6V
-
Ideal for compact and medium-power battery systems
🔹 10A Charge & Discharge Current
-
Continuous 10 Amp support
-
Suitable for portable devices, e-bikes, and small storage units
-
Reliable power delivery
🔹 Built-In Protection Features
-
Overcharge protection
-
Over-discharge protection
-
Short-circuit protection
-
Overcurrent protection
-
Temperature stability
-
Reverse connection safety
Ensures safe operation under all conditions.
🔹 Blue Square PCB Design
-
Improved heat dissipation
-
Stable high-quality copper traces
-
Durable build for long-term usage
🔹 Ease of Integration
-
Simple wiring design
-
Compact size fits most battery housings
-
DIY-friendly installation
📐 Dimensions & Weight
📏 Size (Approx.)
-
Length: 55–60 mm
-
Width: 35–45 mm
-
Thickness: 8–12 mm
⚖ Weight
-
Approx. 30–50 grams
