🧾 Product Description

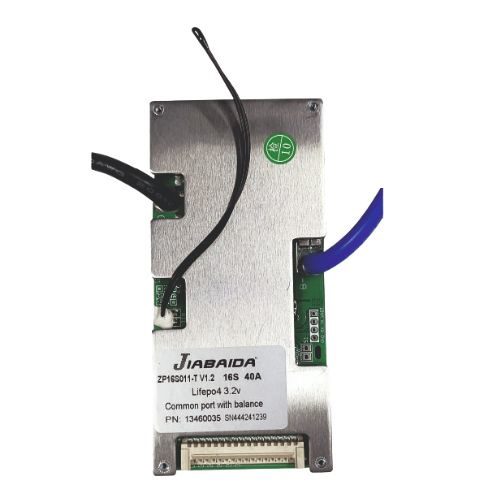

The JBD BMS LFP 16S 40A ZP16S011 is a high‑performance hardware Battery Management System designed for 16‑cell series (16S) lithium‑iron‑phosphate (LiFePO₄ / LFP) battery packs, with a nominal voltage of approximately 51.2 V (3.2 V per cell × 16). This BMS delivers a continuous discharge current of 40 A, making it ideal for medium‑power LFP pack applications such as energy storage systems, e‑mobility devices, DIY battery builds and backup power systems.
With integrated passive cell balancing, this model ensures each cell in the pack remains at an equal voltage, improving overall battery life and performance. The ZP16S011 features comprehensive protection layers — including overcharge, over‑discharge, overcurrent, short‑circuit, and temperature protection — ensuring safe and reliable operation.
Its common‑port design simplifies installation (shared terminals for charge and discharge), making it suitable for both professional and DIY applications. Built by trusted manufacturer JBD (Jiabaida), this board provides an excellent balance of durability, performance and safety for 16‑series LFP battery systems.
Key Features:
-
Battery Chemistry: LiFePO₄ (LFP)
-
Series Configuration: 16S (16 cells in series)
-
Nominal Voltage: ~51.2 V
-
Continuous Discharge Current: 40 A
-
Charge Voltage: ~58.4 V (3.65 V × 16 cells)
-
Protection Functions: Over‑charge, Over‑discharge, Over‑current, Short‑circuit, Over‑temperature
-
Cell Balancing: Passive balancing (~30‑60 mA typical)
-
Port Type: Common‑Port (single charge/discharge terminal)
-
Operating Temperature Range: ~‑20°C to +75°C
Physical/Package Specifications (Approximate):
-
Dimensions: Approx. ~130 mm × ~60 mm × ~12 mm (as per spec sheet)
-
Weight: Approx. ~110 g
-
Package Includes:
-
1 × JBD BMS LFP 16S 40A (ZP16S011) Board
-
1 × Balance Wire Harness
-
📋 Applications
This BMS is well‑suited for use in:
-
Home energy storage systems and off‑grid battery banks using ~51 V LiFePO₄ packs
-
E‑mobility devices (e‑bikes, e‑scooters) configured for 16‑series LFP battery packs
-
DIY battery pack builds and powerwall installations requiring safe 16S configuration
-
Industrial battery systems, backup UPS banks, solar storage units needing reliable pack protection
-
High‑voltage tool systems or modular battery packs requiring robust cell balancing and protection
