Description

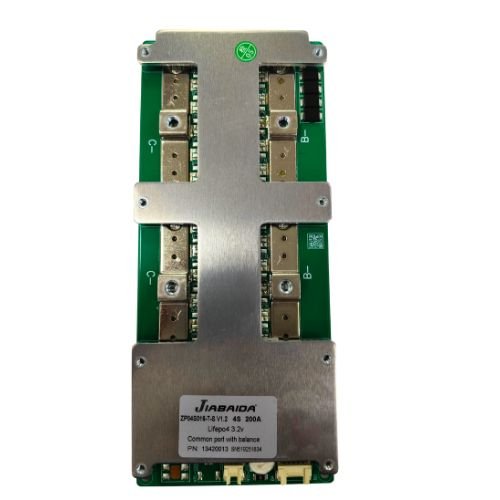

The JBD BMS LFP 4S 200A (Model ZP04S016 – 7d3e) is a high-performance Battery Management System engineered for 4-cell (4S) LiFePO₄ (LFP) battery packs with a nominal voltage of 12.8 V (3.2 V × 4). Designed for demanding high-current applications, it can handle up to 200 A continuous discharge current, providing exceptional reliability, safety, and efficiency for your power system.
This model features complete protection circuitry, including over-charge, over-discharge, over-current, short-circuit, and temperature protection, ensuring safe operation under all conditions. Integrated passive cell balancing helps equalize voltage across all cells to enhance performance, capacity retention, and lifespan.
The ZP04S016 uses a common-port configuration for simplified wiring and efficient power management. Its heavy-duty PCB, high-current MOSFETs, and optimized heat dissipation design make it perfect for high-load LiFePO₄ battery systems such as solar banks, inverters, and EV power supplies.
🔧 Key Features
Battery Chemistry: LiFePO₄ (LFP)
Configuration: 4S (4 cells in series)
Nominal Voltage: 12.8 V
Continuous Discharge Current: 200 A
Peak Current: up to 220 A (short duration)
Balancing Type: Passive cell balancing
Protection Functions:
Over-charge protection
Over-discharge protection
Over-current protection
Short-circuit protection
Temperature protection
Port Type: Common-port (shared charge & discharge)
Operating Temperature: –20 °C to +75 °C
Model Code: ZP04S016 (7d3e)
⚙️ Physical Specifications
Dimensions: Approx. 150 mm × 80 mm × 25 mm
Weight: ≈ 180 g
Package Includes:
1 × JBD BMS LFP 4S 200A (ZP04S016) Board
1 × 4-cell Balance Wire Harness
⚡ Applications
The JBD 4S 200A BMS is ideal for:
12 V LiFePO₄ battery systems in RVs, marine applications, and solar energy banks
Inverters, UPS, and backup power systems
High-power e-mobility and EV battery packs
DIY Powerwalls and home energy storage projects
Industrial or off-grid LiFePO₄ power applications
