Description

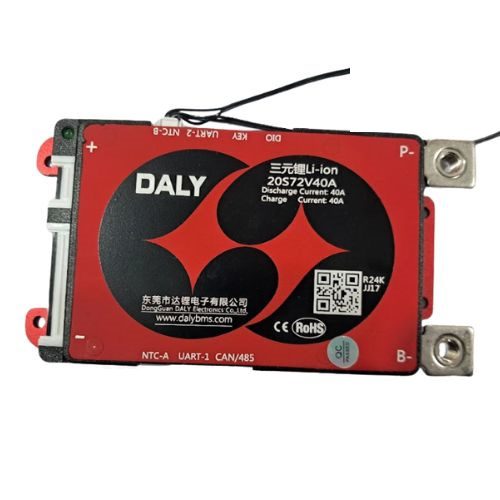

BMS NMC 20S 40A SMART CAN DALY is a high-performance smart Battery Management System designed for 20-cell (20S) Lithium-ion (NMC) DALY battery packs with a nominal voltage of 74V. Equipped with CAN Bus smart communication, this BMS provides real-time monitoring, diagnostics, and integration with controllers, inverters, and display systems — ideal for electric vehicles (EVs), e-bikes, solar energy storage systems, and high-voltage lithium battery packs.
The Daly 20S 40A Smart CAN BMS supports a continuous discharge current of 40A, delivering stable and efficient performance while providing comprehensive protection against overcharge, over-discharge, overcurrent, short-circuit, and temperature issues. Its active cell balancing system ensures all cells maintain equal voltage, improving battery lifespan, safety, and reliability.
Constructed with premium MOSFETs and industrial-grade components, this BMS guarantees accurate current control, robust heat management, and long-term durability, making it a trusted solution for high-voltage lithium-ion energy systems.
Key Features:
-
🔋 Battery Type: NMC (Li-ion) 20S, 74V nominal
-
⚡ Continuous Discharge Current: 40A
-
🔌 Charge Voltage: 84V (Max)
-
🧠 Smart Communication: CAN Bus for real-time monitoring and system integration
-
🛡️ Protection Features:
-
Overcharge protection
-
Over-discharge protection
-
Overcurrent protection
-
Short-circuit protection
-
Temperature protection
-
Active/passive cell balancing
-
-
🌡️ Operating Temperature: –20°C to +70°C
-
⚙️ Wiring Type: Common port / Separate port (model dependent)
-
💡 Applications: Electric vehicles, e-bikes, e-scooters, solar storage systems, inverters, and high-voltage lithium battery packs
Physical Specifications:
-
📏 Dimensions: Approx. 95mm × 65mm × 12mm
-
⚖️ Weight: Approx. 90g
Package Includes:
-
1 × BMS NMC 20S 40A SMART CAN DALY Board
-
1 × Balance Wire Harness
-
1 × CAN Communication Cable
Applications:
The BMS NMC 20S 40A SMART CAN DALY is perfect for:
-
⚡ Electric Vehicles (EVs)
-
🛵 E-bikes and e-scooters
-
🌞 Solar energy storage systems
-
🔋 High-voltage lithium battery packs
-
🏠 Off-grid energy systems
-
⚙️ Inverters and UPS systems
-
🚤 Electric boats and marine applications
-
🛠️ Industrial lithium battery applications….
