Description

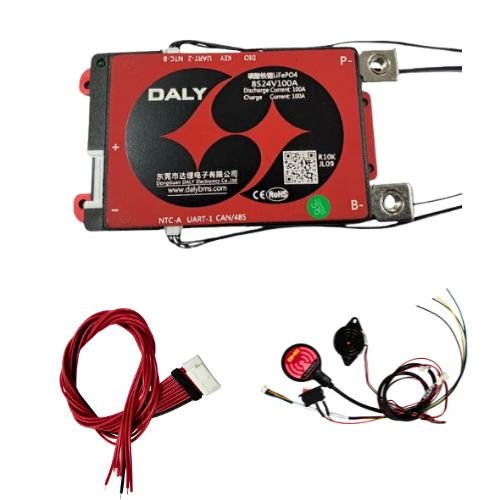

BMS LFP 8S 100A SMART CAN DALY (21a8)
| Feature | Specification |
|---|---|
| Battery Type | LiFePO4 (3.2V nominal per cell) |
| Cell Configuration | 8S (8 Cells in Series) |
| Continuous Current | 100A Charge / 100A Discharge |
| Communication | CANBus, UART |
| Monitoring Support | PC Software & Mobile App (via module) |
| Balancing Type | Passive Balancing |
| Balance Current | ~60mA |
| Protections | OVP, UVP, SCP, OCP, OTP |
| Wiring Port | Common Port (same for charge/discharge) |
| NTC Temperature Sensors | Dual (Built-in for precision control) |
| Housing | Aluminum Case for thermal and structural safety |
Key Features
- ** 100A Heavy-Duty Current Handling**
Built for power-hungry applications like electric vehicles, energy banks, or inverters with high charging/discharging needs. - ** Dual Communication Ports (CAN + UART)**
Enables integration with modern controllers, BMS viewers, and data loggers for advanced monitoring and diagnostics. - ** Real-Time App Connectivity**
Optional Bluetooth module (sold separately) connects to DALY’s mobile app for real-time SOC, voltage, temperature, and fault status. - ** Smart Functionality**
Customizable voltage thresholds, thermal cutoffs, and cell balancing settings enhance battery performance and lifespan. - ** Precision Thermal Management**
Integrated dual NTC temperature probes detect and respond to thermal rise, automatically disconnecting load/charge if overheating occurs. - ** Robust Build**
Compact yet sturdy aluminum housing ensures durability and optimal heat dissipation even in extreme working conditions.
Applications
- Solar Off-Grid and Hybrid Energy Storage
- Electric Rickshaws, EV Conversions, e-Bikes
- Residential & Commercial Power Backup Systems
- Industrial LiFePO4 Battery Packs and Powerwalls
- Marine and Mobility Applications
With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.
