Description

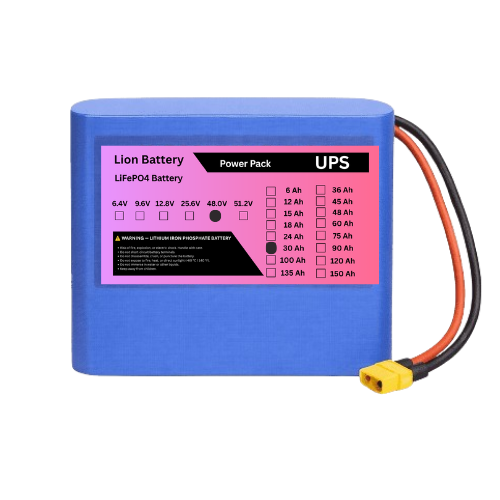

Power Pack LiFePO₄ 16S 51.2V 30Ah 16S2P 3C With BMS LFP Battery Pack
The Power Pack LiFePO₄ 16S 51.2V 30Ah 16S2P 3C With BMS LFP Battery Pack is a high-performance rechargeable lithium iron phosphate battery designed for solar energy storage, inverter systems, UPS applications, electric vehicles, industrial equipment, and backup power systems.
This battery uses a 16S2P configuration with approximately 15Ah LiFePO₄ cells, providing 30Ah capacity. With a nominal voltage of 51.2V, the battery offers approximately 1,536Wh (1.54kWh) of energy storage.
The integrated 16S LiFePO₄ BMS provides protection against overcharge, over-discharge, over-current, short circuit, and cell imbalance.
Key Features
- Battery Chemistry: LiFePO₄ (LFP)
- Cell Type: LiFePO₄
- Configuration: 16S2P
- Nominal Voltage: 51.2V
- Capacity: 30Ah / 30,000mAh
- Cell Capacity: Approx. 15Ah
- Total Cells: 32
- Maximum Charge Voltage: 57.6V
- Energy Capacity: Approx. 1,536Wh / 1.54kWh
- Discharge Rating: 3C
- Theoretical 3C Current: 90A
- BMS: 16S LiFePO₄ BMS
- Long cycle-life LFP chemistry
- Excellent thermal stability
- Suitable for solar, inverter and EV applications
- Custom connectors and wiring available
16S2P Battery Configuration
The battery uses a 16S2P configuration:
- 16 cell groups connected in series
- 2 cells connected in parallel per group
- Total cells: 16 × 2 = 32
- Cell capacity: approximately 15Ah
- Pack capacity: 15Ah × 2 = 30Ah
- Nominal voltage: 3.2V × 16 = 51.2V
- Maximum charge voltage: 3.6V × 16 = 57.6V
- Energy capacity: 51.2V × 30Ah = 1,536Wh
- Theoretical 3C current: 30Ah × 3 = 90A
BMS Protection
The integrated 16S LiFePO₄ BMS helps provide:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Cell voltage monitoring
- Cell balancing
- Temperature protection, depending on BMS model
The BMS current rating should be selected according to the actual continuous and peak current requirements of the application.
Connector & Wire
The battery pack can be customized with:
- XT60 / XT90 / XT150 connectors
- Anderson-style high-current connectors
- High-current terminals
- Custom charging connector
- Custom wire gauge
- Custom cable length
- Common or separate charge/discharge ports
Applications
- Solar energy storage
- Solar inverter systems
- UPS systems
- Backup power
- Electric scooters
- Electric bikes
- Electric three-wheelers
- Golf carts
- Electric vehicles
- AGV / AMR systems
- Robotics
- Industrial equipment
- Telecom backup
- Portable power systems
- OEM / ODM battery projects
Advantages
- 30Ah high-capacity battery
- Approximately 1.54kWh energy storage
- 16S2P configuration
- 51.2V nominal voltage
- LiFePO₄ chemistry
- Integrated BMS protection
- Excellent thermal stability
- Long cycle-life potential
- Suitable for solar and inverter applications
- Custom connectors and wiring available
- Suitable for OEM and bulk requirements
Package Includes
- 1 × 16S2P 51.2V 30Ah LiFePO₄ Battery Pack
- 32 × LiFePO₄ cells
- 1 × 16S LiFePO₄ BMS
- Cell interconnections
- Protective insulation
- Battery pack assembly
- Output wiring and connector as specified
