Description

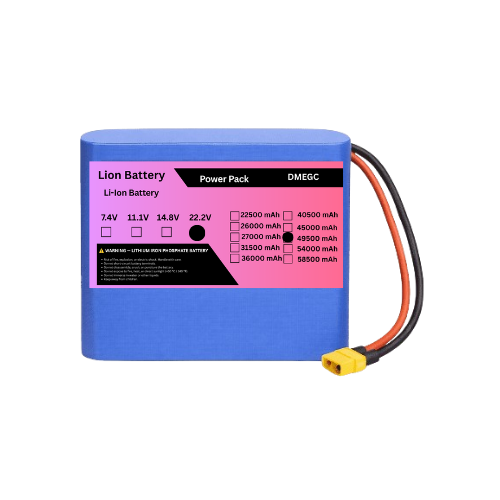

DMEGC 6S 22.2V 49500mAh (49.5Ah) 6S11P 3C Lithium-Ion Rechargeable Battery Pack
The DMEGC 6S 22.2V 49500mAh (49.5Ah) Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC lithium-ion battery pack configured in 6S11P, using DMEGC 4500mAh cylindrical cells.
With a 22.2V nominal voltage and 49.5Ah capacity, this battery provides approximately 1098.9Wh (1.10kWh) of nominal energy. The 6S11P configuration is designed for applications requiring extended runtime, high capacity, and reliable rechargeable power.
Key Features
- Brand: DMEGC
- Battery Chemistry: NMC Lithium-Ion
- Cell Type: Cylindrical Lithium-Ion
- Cell Capacity: 4500mAh
- Configuration: 6S11P
- Nominal Voltage: 22.2V
- Maximum Charging Voltage: 25.2V
- Capacity: 49500mAh / 49.5Ah
- Nominal Energy: Approximately 1098.9Wh
- Total Cells: 66
- 3C-class configuration
- Rechargeable lithium-ion technology
- Suitable for custom BMS and connector configurations
6S11P Battery Configuration
The battery pack contains 66 DMEGC cells arranged in a 6S11P configuration:
- 6 cells/groups connected in series = 6S
- 11 cells connected in parallel per group = 11P
- Total cells = 6 × 11 = 66 cells
- Capacity = 11 × 4.5Ah = 49.5Ah
- Nominal voltage = 6 × 3.7V = 22.2V
- Maximum charge voltage = 6 × 4.2V = 25.2V
- Nominal energy = 22.2V × 49.5Ah = 1098.9Wh
3C Lithium-Ion Configuration
The theoretical 3C current calculation is:
49.5Ah × 3C = 148.5A
The 148.5A figure is a theoretical cell-based calculation and should not automatically be considered the continuous discharge rating of the finished battery pack. The actual current capability depends on the selected BMS, cells, interconnects, wiring, connectors and thermal design.
BMS Protection
A suitable 6S NMC Lithium-Ion BMS can provide:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Over-temperature protection
- Cell balancing
- Charging and discharging protection
The BMS should be selected according to the application’s required continuous and peak current.
Applications
The DMEGC 6S 22.2V 49.5Ah battery pack is suitable for:
- Electric scooters
- Electric bikes
- Robotics
- Portable power systems
- Industrial equipment
- Backup power systems
- Custom EV projects
- DC power systems
- DIY lithium battery projects
- OEM battery applications
Advantages
- 49.5Ah high-capacity battery
- Approximately 1098.9Wh / 1.10kWh nominal energy
- 6S11P configuration
- Uses high-capacity cylindrical lithium-ion cells
- Suitable for extended-runtime applications
- Rechargeable NMC battery technology
- Custom BMS and connector options available
- Suitable for OEM and custom battery-pack projects
Package Includes
- 1 × DMEGC 6S11P 22.2V 49.5Ah Lithium-Ion Battery Pack
- BMS according to selected configuration
- Battery interconnects and wiring
- Output connector according to requirement
Important Charging Information
Use a 25.2V lithium-ion charger specifically designed for a 6S NMC battery pack.
