Description

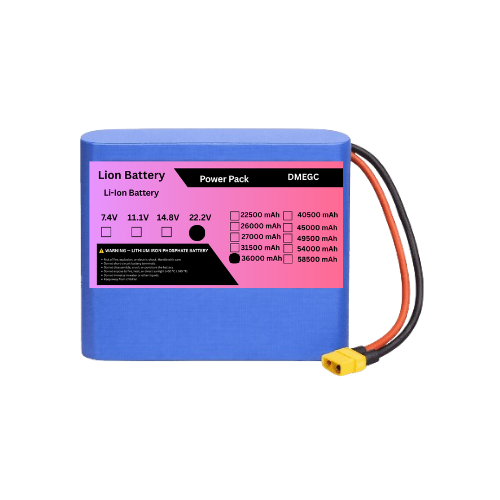

DMEGC 6S 22.2V 36000mAh (36Ah) 6S8P 3C Lithium-Ion Rechargeable Battery Pack
The DMEGC 6S 22.2V 36000mAh (36Ah) Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC lithium-ion battery pack configured in 6S8P, using DMEGC 4500mAh cells.
With a 22.2V nominal voltage and 36Ah capacity, this battery provides approximately 799.2Wh of nominal energy, making it suitable for applications requiring extended runtime and reliable rechargeable power.
Key Features
- Brand: DMEGC
- Battery Chemistry: NMC Lithium-Ion
- Cell Type: Cylindrical Lithium-Ion
- Cell Capacity: 4500mAh
- Configuration: 6S8P
- Nominal Voltage: 22.2V
- Maximum Charging Voltage: 25.2V
- Capacity: 36000mAh / 36Ah
- Nominal Energy: Approximately 799.2Wh
- Total Cells: 48
- 3C-class configuration
- Rechargeable lithium-ion technology
- Suitable for custom BMS and connector configurations
6S8P Battery Configuration
The battery contains 48 DMEGC cells arranged in a 6S8P configuration:
- 6 cells/groups in series = 6S
- 8 cells in parallel per group = 8P
- Total cells = 6 × 8 = 48 cells
- Capacity = 8 × 4.5Ah = 36Ah
- Nominal voltage = 6 × 3.7V = 22.2V
- Maximum charge voltage = 6 × 4.2V = 25.2V
- Nominal energy = 22.2V × 36Ah = 799.2Wh
3C Lithium-Ion Configuration
The theoretical 3C current calculation is:
36Ah × 3C = 108A
The 108A figure is a theoretical cell-based calculation, not automatically the continuous output rating of the finished battery. The actual safe current rating should be determined by the selected BMS and complete pack construction.
BMS Protection
A suitable 6S NMC Lithium-Ion BMS can provide:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Over-temperature protection
- Cell balancing
- Charging and discharging protection
The BMS should be selected according to the application’s required continuous and peak current.
Applications
This DMEGC 6S 22.2V 36Ah battery pack is suitable for:
- Electric scooters
- Electric bikes
- Robotics
- Portable power systems
- Industrial equipment
- Backup power systems
- Custom EV projects
- DC power systems
- DIY lithium battery projects
- OEM battery applications
Advantages
- 36Ah high-capacity battery
- Approximately 799.2Wh nominal energy
- 6S8P configuration
- Uses high-capacity cylindrical lithium-ion cells
- Suitable for extended-runtime applications
- Rechargeable NMC battery technology
- Custom BMS and connector options
- Suitable for OEM and custom battery-pack projects
Package Includes
- 1 × DMEGC 6S8P 22.2V 36Ah Lithium-Ion Battery Pack
- BMS according to selected configuration
- Battery interconnects and wiring
- Output connector according to requirement
Important Charging Information
Use a 25.2V lithium-ion charger specifically designed for a 6S NMC battery pack.
Do not use a LiFePO4 charger or a charger designed for a different series configuration. Always use an appropriately rated BMS and charger.
