Description

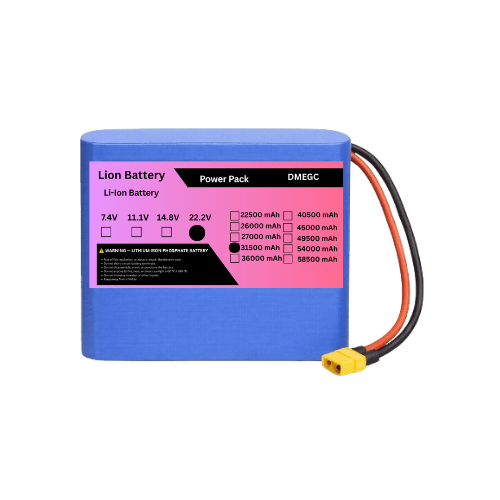

DMEGC 6S 22.2V 31500mAh (31.5Ah) 6S7P 3C Lithium-Ion Rechargeable Battery Pack
The DMEGC 6S 22.2V 31500mAh (31.5Ah) Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC lithium-ion battery pack configured in 6S7P using DMEGC 4500mAh cells.
With a 22.2V nominal voltage and 31.5Ah capacity, this battery provides approximately 699.3Wh of nominal energy. The 6S7P configuration combines 6 series groups with 7 cells connected in parallel in each group, making it suitable for applications requiring extended runtime and dependable rechargeable power.
Key Features
- Brand: DMEGC
- Chemistry: NMC Lithium-Ion
- Cell Type: Cylindrical Lithium-Ion
- Cell Capacity: 4500mAh
- Configuration: 6S7P
- Nominal Voltage: 22.2V
- Maximum Charging Voltage: 25.2V
- Capacity: 31500mAh / 31.5Ah
- Nominal Energy: Approximately 699.3Wh
- Total Cells: 42
- 3C-class configuration
- Rechargeable lithium-ion technology
- Suitable for custom BMS and connector configurations
6S7P Battery Configuration
The battery pack contains 42 DMEGC cells arranged in a 6S7P configuration:
- 6 cells/groups connected in series = 6S
- 7 cells connected in parallel per group = 7P
- Total cells = 6 × 7 = 42 cells
- Capacity = 7 × 4.5Ah = 31.5Ah
- Nominal voltage = 6 × 3.7V = 22.2V
- Maximum charge voltage = 6 × 4.2V = 25.2V
- Nominal energy = 22.2V × 31.5Ah = 699.3Wh
3C Lithium-Ion Configuration
The theoretical 3C current calculation is:
31.5Ah × 3C = 94.5A
The 94.5A figure is a theoretical cell-based calculation and should not automatically be considered the finished pack’s continuous discharge rating. The actual safe current depends on the BMS and complete battery-pack design.
BMS Protection
A suitable 6S NMC Lithium-Ion BMS can provide:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Over-temperature protection
- Cell balancing
- Charging and discharging protection
The BMS should be selected according to the required continuous and peak current of the application.
Applications
The DMEGC 6S 22.2V 31.5Ah battery pack is suitable for:
- Electric scooters
- Electric bikes
- Robotics
- Portable power systems
- Industrial equipment
- Backup power systems
- Custom EV projects
- DC power systems
- DIY lithium battery projects
- OEM battery applications
Advantages
- 31.5Ah high-capacity battery
- Approximately 699.3Wh nominal energy
- 6S7P configuration
- Uses high-capacity cylindrical lithium-ion cells
- Suitable for extended-runtime applications
- Rechargeable NMC battery technology
- Custom BMS and connector options available
- Suitable for OEM and custom battery-pack projects
Package Includes
- 1 × DMEGC 6S7P 22.2V 31.5Ah Lithium-Ion Battery Pack
- BMS according to selected configuration
- Battery interconnects and wiring
- Output connector according to requirement
Important Charging Information
Use a 25.2V lithium-ion charger specifically designed for a 6S NMC battery pack.
Do not use a LiFePO4 charger or a charger designed for a different series configuration. Always use an appropriately rated BMS and charger.
