Description

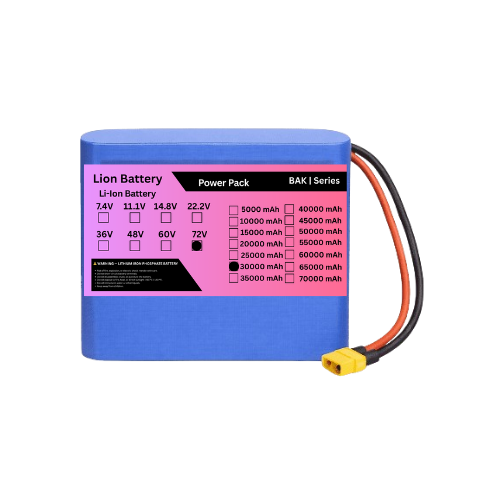

BAK 20S 72V 30000mAh (30Ah) 20S6P 3C Lithium-Ion Rechargeable Battery Pack
The BAK 20S 72V 30000mAh (30Ah) 20S6P 3C Lithium-Ion Battery Pack is a high-capacity rechargeable battery solution designed for electric mobility, energy storage, industrial equipment, and other high-power applications. Built using BAK lithium-ion cells, this battery pack combines high energy capacity with dependable discharge performance for applications requiring extended operating time.
With a 72V nominal voltage and 30Ah capacity, the pack provides approximately 2.16 kWh of nominal energy. The 20S6P configuration uses 20 cells connected in series and 6 parallel cell groups, providing a practical balance between voltage, capacity, and power output.
Key Features
- 72V 30Ah high-capacity lithium-ion battery pack
- 20S6P configuration for high voltage and increased capacity
- Approximately 2.16 kWh nominal energy
- Up to 3C discharge capability based on the stated specification
- Designed for long-duration operation
- Suitable for custom EV and industrial battery systems
- Rechargeable lithium-ion technology
- Compatible with properly rated BMS and charger systems
- Suitable for professional battery-pack integration
Applications
The BAK 72V 30Ah Lithium-Ion Battery Pack can be used for:
- Electric bikes and high-performance e-bikes
- Electric scooters and motorcycles
- Electric three-wheelers
- Electric vehicles and utility vehicles
- Robotics and industrial equipment
- Portable power systems
- Energy storage applications
- Custom lithium battery projects
20S6P Configuration Explained
The 20S6P battery configuration means:
- 20S: 20 cell groups are connected in series to achieve the required high-voltage battery system.
- 6P: Each series group contains 6 cells connected in parallel to increase the overall capacity.
- Total: 20 × 6 = 120 individual cells, assuming the pack uses one cell per position.
