Description

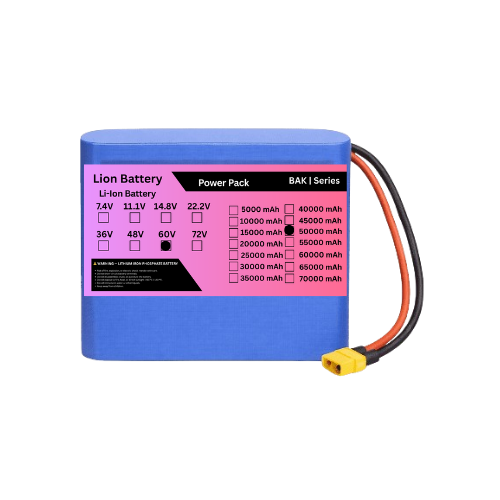

BAK 16S 60V 50000mAh 16S10P 3C Lithium-Ion Rechargeable Battery Pack
The BAK 16S 60V 50000mAh (50Ah) 16S10P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for electric scooters, e-bikes, electric motorcycles, EV applications, robotics, industrial equipment, and other high-energy applications.
Built in a 16S10P configuration, the battery pack contains 160 lithium-ion cells, arranged into 16 series groups with 10 cells connected in parallel in each group.
Using a typical 3.6V nominal NMC cell voltage, the pack provides approximately 57.6V nominal voltage and approximately 2.88kWh nominal energy. With standard 4.2V-per-cell charging, the maximum charging voltage is 67.2V.
The battery can be supplied with a suitable BMS, cell balancing, connectors, wiring, insulation, enclosure, and protection system according to the application requirements.
Key Features
- BAK Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 16S10P Battery Configuration
- 60V-Class Lithium-Ion Battery
- 50000mAh (50Ah) Capacity
- 3C Cell Technology
- Approximately 2.88kWh Nominal Energy
- High Energy Density
- Rechargeable Battery Pack
- Optional Standard or Smart BMS
- Bluetooth / CAN / RS485 BMS Options
- Custom Connectors & Wiring Available
- Suitable for EV and Industrial Applications
- OEM & Custom Battery Pack Manufacturing
Battery Configuration
16S10P = 16 series groups × 10 cells in parallel
- Series: 16
- Parallel: 10
- Total cells: 160
- Capacity: 50Ah
- Nominal voltage: approximately 57.6V
- Maximum charging voltage: 67.2V
- Nominal energy: approximately 2.88kWh
- Battery class: 60V Lithium-Ion
Applications
- Electric Scooters
- Electric Bikes
- Electric Motorcycles
- EV Battery Packs
- Electric Rickshaws
- Robotics
- AGV & AMR Systems
- Industrial Equipment
- Portable Power Systems
- Backup Power Systems
- Custom OEM Battery Packs
Advantages
- High-capacity 50Ah battery
- 16S10P configuration
- Approximately 2.88kWh energy
- High energy density
- 60V-class lithium-ion output
- NMC lithium-ion chemistry
- Optional Smart BMS
- Custom wiring and connectors
- Suitable for EV and industrial applications
- OEM and bulk manufacturing available
Package Includes
1 × BAK 16S 60V 50000mAh 16S10P 3C Lithium-Ion Rechargeable Battery Pack
