Description

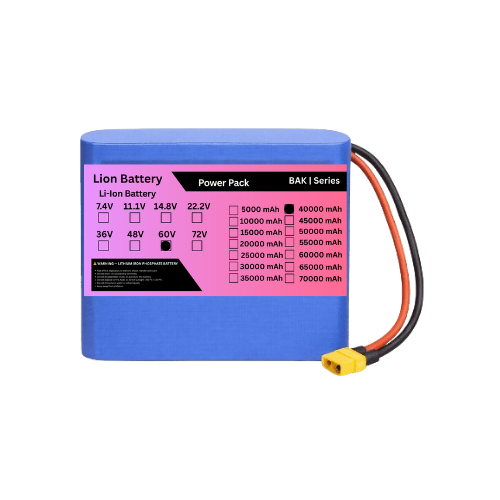

BAK 16S 60V 40000mAh 16S8P 3C Lithium-Ion Rechargeable Battery Pack
The BAK 16S 60V 40000mAh (40Ah) 16S8P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for electric scooters, e-bikes, electric motorcycles, EV systems, robotics, industrial equipment, and other applications requiring high energy storage and reliable power delivery.
Built in a 16S8P configuration, the pack contains 128 lithium-ion cells, arranged as 16 series groups with 8 cells connected in parallel.
With a 40Ah capacity, this is a 60V-class lithium-ion battery pack with a 67.2V maximum charging voltage when using standard 4.2V-per-cell NMC cells. Using a typical 3.6V nominal cell voltage, the pack provides approximately 57.6V nominal voltage and approximately 2.30kWh of nominal energy.
The battery can be supplied with a suitable BMS, cell balancing, custom connectors, wiring, enclosure, and output terminals according to your application requirements.
⭐ Key Features
- Premium BAK Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 16S8P Battery Configuration
- 60V-Class Lithium-Ion Battery
- 40000mAh (40Ah) Capacity
- 3C High-Discharge Cell Technology
- Approximately 2.30kWh Energy
- High Energy Density
- 18650 Cell Construction
- Stable Power Delivery
- Rechargeable Battery Design
- Optional Standard or Smart BMS
- Bluetooth / CAN / RS485 BMS Options
- Custom Connector & Wiring Available
- OEM & ODM Battery Pack Manufacturing
🔋 Battery Configuration
16S8P = 16 series groups × 8 cells in parallel
- Total cells: 128
- Series: 16
- Parallel: 8
- Capacity: 40Ah
- Nominal voltage: approximately 57.6V
- Maximum charge voltage: 67.2V
- Battery class: 60V Lithium-Ion
- Approximate energy: 2.30kWh
🔧 Applications
- Electric Scooters
- Electric Bikes
- Electric Motorcycles
- Electric Rickshaws
- EV Battery Packs
- Robotics
- AGV & AMR Systems
- Portable Power Equipment
- Industrial Machinery
- Communication Equipment
- Backup Power Systems
- Custom OEM Battery Packs
✅ Advantages
- High-capacity 40Ah battery
- 16S8P configuration
- Approximately 2.30kWh energy
- High energy density
- 60V-class lithium-ion output
- Reliable NMC chemistry
- Custom BMS options
- Custom connectors and wiring
- Suitable for EV and industrial applications
- OEM and bulk manufacturing available
📦 Package Includes
1 × BAK 16S 60V 40000mAh 16S8P 3C Lithium-Ion Rechargeable Battery Pack
