Description

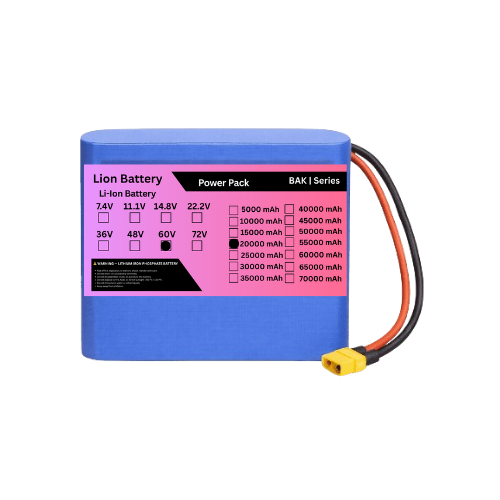

BAK 16S 60V 20000mAh 16S4P 3C Lithium-Ion Rechargeable Battery Pack
The BAK 16S 60V 20000mAh (20Ah) 16S4P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for electric mobility, robotics, industrial equipment, and other high-performance applications.
Built in a 16S4P configuration, this battery pack contains 64 lithium-ion cells, arranged as 16 cells in series and 4 cells in parallel. The 60V-class configuration provides a 67.2V maximum charging voltage when using standard 4.2V-per-cell NMC cells.
With a 20Ah capacity, the pack provides approximately 1.15kWh of nominal energy when calculated using a typical 57.6V nominal pack voltage. The 3C rating refers to the cell specification and should be matched to the exact BAK cell model used in the finished pack.
This battery can be customized with a Smart BMS, Bluetooth monitoring, CAN/RS485 communication, custom connectors, wiring, enclosure, and mounting configuration according to the application.
Key Features
- Premium BAK Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 16S4P Battery Configuration
- 60V-Class Lithium-Ion Battery
- 20000mAh (20Ah) Capacity
- 3C High-Discharge Cell Technology
- Approximately 1.15kWh Energy
- High Energy Density
- Compact 18650 Battery Construction
- Stable Voltage Output
- Rechargeable Design
- Optional Standard or Smart BMS
- Bluetooth / CAN / RS485 Options
- Custom Connector & Wiring Available
- OEM & ODM Battery Pack Manufacturing
🔋 Battery Configuration
16S4P = 16 series groups × 4 cells in parallel
- Total cells: 64
- Series: 16
- Parallel: 4
- Capacity: 20Ah
- Nominal voltage: approximately 57.6V
- Maximum charge voltage: 67.2V
- Battery class: 60V Lithium-Ion
- Approximate energy: 1.15kWh
🔧 Applications
- Electric Scooters
- Electric Bikes
- Electric Motorcycles
- EV Battery Packs
- Electric Rickshaws
- Robotics
- AGV & AMR Systems
- Portable Power Equipment
- Industrial Machinery
- Medical Equipment
- Communication Equipment
- Backup Power Systems
- Custom OEM Battery Packs
✅ Advantages
- High-capacity 20Ah battery
- 16S4P configuration
- Approximately 1.15kWh energy
- High energy density
- 60V-class lithium-ion output
- Reliable NMC chemistry
- Custom BMS options
- Custom connectors and wiring
- Suitable for EV and industrial applications
- OEM and bulk manufacturing available
📦 Package Includes
1 × BAK 16S 60V 20000mAh 16S4P 3C Lithium-Ion Rechargeable Battery Pack
