Description

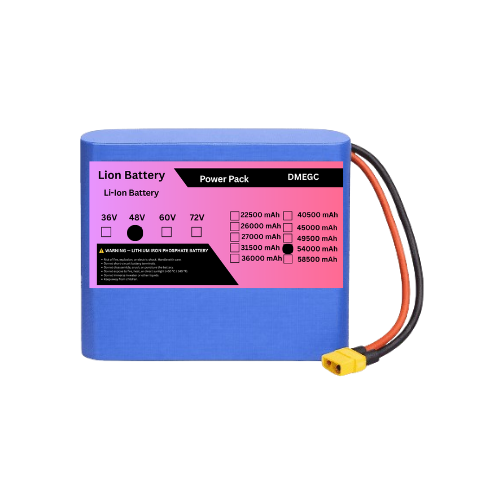

DMEGC 13S 48V 54000mAh (54Ah) 13S12P 3C Lithium-Ion Rechargeable Battery Pack
The DMEGC 13S 48V 54000mAh (54Ah) 13S12P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for e-bikes, electric scooters, electric motorcycles, EVs, robotics, energy storage systems, and industrial applications.
Built in a 13S12P configuration, this battery pack contains 156 lithium-ion cells, arranged as 13 series groups with 12 cells connected in parallel in each group.
Using a typical 3.6V nominal NMC cell voltage, the battery provides approximately 46.8V nominal voltage, commonly marketed as a 48V-class battery, with approximately 2.53kWh nominal energy. With a standard 4.2V-per-cell charging voltage, the maximum charging voltage is 54.6V.
The battery pack can be supplied with a suitable BMS, cell balancing, connectors, wiring, insulation, enclosure, and protection system according to your application requirements.
Key Features
- DMEGC Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 13S12P Battery Configuration
- 48V-Class Lithium-Ion Battery
- 54000mAh (54Ah) Capacity
- 3C Cell Technology
- Approximately 2.53kWh Nominal Energy
- High Energy Density
- Rechargeable Battery Pack
- Optional Standard or Smart BMS
- Bluetooth / CAN / RS485 BMS Options
- Custom Connectors & Wiring Available
- Suitable for EV & Energy Storage Applications
- OEM & Custom Battery Pack Manufacturing
Battery Configuration
13S12P = 13 series groups × 12 cells in parallel
- Series: 13
- Parallel: 12
- Total Cells: 156
- Capacity: 54Ah
- Nominal Voltage: approximately 46.8V
- Maximum Charging Voltage: 54.6V
- Nominal Energy: approximately 2.53kWh
- Battery Class: 48V Lithium-Ion
Applications
- 48V E-Bikes
- Electric Scooters
- Electric Motorcycles
- EV Battery Packs
- Electric Rickshaws
- Robotics
- AGV & AMR Systems
- Portable Power Systems
- Solar & Energy Storage Systems
- Industrial Equipment
- Custom OEM Battery Packs
Advantages
- Reliable DMEGC lithium-ion cells
- High-capacity 54Ah battery
- 13S12P configuration
- Approximately 2.53kWh energy
- 48V-class lithium-ion output
- NMC lithium-ion chemistry
- High energy density
- Optional Smart BMS
- Custom wiring and connectors
- Suitable for EV and energy storage applications
- OEM and bulk manufacturing available
Package Includes
1 × DMEGC 13S 48V 54000mAh (54Ah) 13S12P 3C Lithium-Ion Rechargeable Battery Pack
