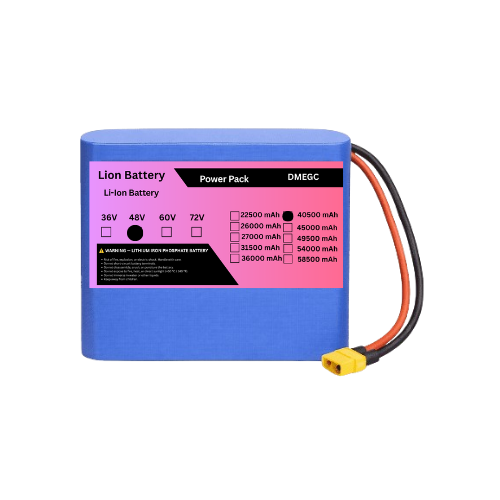

DMEGC 13S 48V 40500mAh (40.5Ah) 13S9P 3C Lithium-Ion Rechargeable Battery Pack
The DMEGC 13S 48V 40500mAh (40.5Ah) 13S9P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for e-bikes, electric scooters, electric motorcycles, EVs, robotics, portable power systems, and industrial applications.
Built in a 13S9P configuration, the pack contains 117 lithium-ion cells, arranged as 13 series groups with 9 cells connected in parallel in each group.
Using a typical 3.6V nominal NMC cell voltage, the battery provides approximately 46.8V nominal voltage, commonly referred to as a 48V-class battery, with approximately 1.90kWh nominal energy. With standard 4.2V-per-cell charging, the maximum charging voltage is 54.6V.
The battery pack can be supplied with a suitable BMS, cell balancing, connectors, wiring, insulation, enclosure, and protection system according to your application requirements.
Key Features
- DMEGC Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 13S9P Battery Configuration
- 48V-Class Lithium-Ion Battery
- 40500mAh (40.5Ah) Capacity
- 3C Cell Technology
- Approximately 1.90kWh Nominal Energy
- High Energy Density
- Rechargeable Battery Pack
- Optional Standard or Smart BMS
- Bluetooth / CAN / RS485 BMS Options
- Custom Connectors & Wiring Available
- Suitable for EV & Industrial Applications
- OEM & Custom Battery Pack Manufacturing
Battery Configuration
13S9P = 13 series groups × 9 cells in parallel
- Series: 13
- Parallel: 9
- Total Cells: 117
- Capacity: 40.5Ah
- Nominal Voltage: approximately 46.8V
- Maximum Charging Voltage: 54.6V
- Nominal Energy: approximately 1.90kWh
- Battery Class: 48V Lithium-Ion
Applications
- 48V E-Bikes
- Electric Scooters
- Electric Motorcycles
- EV Battery Packs
- Electric Rickshaws
- Robotics
- AGV & AMR Systems
- Portable Power Systems
- Solar & Energy Storage Applications
- Industrial Equipment
- Custom OEM Battery Packs
Advantages
- Reliable DMEGC lithium-ion cells
- High-capacity 40.5Ah battery
- 13S9P configuration
- Approximately 1.90kWh energy
- 48V-class lithium-ion output
- NMC lithium-ion chemistry
- High energy density
- Optional Smart BMS
- Custom wiring and connectors
- Suitable for EV and industrial applications
- OEM and bulk manufacturing available
Package Includes
1 × DMEGC 13S 48V 40500mAh (40.5Ah) 13S9P 3C Lithium-Ion Rechargeable Battery Pack
