Description

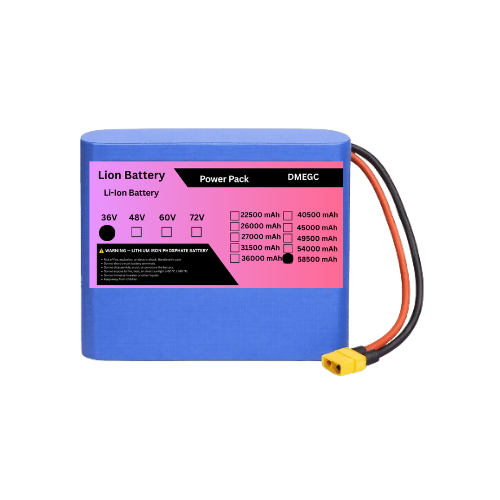

DMEGC 10S 36V 58500mAh (58.5Ah) 10S13P 3C Lithium-Ion Rechargeable Battery Pack
The DMEGC 10S 36V 58500mAh (58.5Ah) 10S13P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for applications requiring reliable power, extended runtime, and high energy storage capacity.
Built in a 10S13P configuration, the battery contains 130 cells, arranged as 10 series groups with 13 cells connected in parallel in each group. Using 4500mAh DMEGC cells, the pack provides 36V nominal voltage and 58.5Ah capacity, delivering approximately 2.106kWh of nominal energy.
This battery pack is suitable for e-bikes, electric scooters, electric vehicles, robotics, energy storage systems, solar applications, industrial equipment, and custom OEM battery applications.
Key Features
- DMEGC Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 10S13P Configuration
- 36V Nominal Voltage
- 58500mAh / 58.5Ah Capacity
- 130 Cells in 10S13P configuration
- 3C Cell Configuration
- Approximately 2.106kWh Nominal Energy
- Rechargeable Battery Pack
- High-Capacity Design
- Suitable for Long-Range Applications
- BMS Protection Available
- Custom Connector & Enclosure Options
- Suitable for OEM & Custom Battery Manufacturing
10S13P Battery Configuration
The battery pack consists of:
10 Series × 13 Parallel = 130 Cells
Each parallel group:
13 × 4500mAh = 58500mAh (58.5Ah)
Nominal Voltage
10 × 3.6V = 36V
Maximum Charging Voltage
10 × 4.2V = 42V
Nominal Energy
36V × 58.5Ah = 2,106Wh
Therefore, the battery provides approximately 2.106kWh of nominal energy.
3C Lithium-Ion Configuration
The 3C specification refers to the discharge capability of the selected DMEGC cells. The 13P configuration provides increased current capability for the parallel groups.
The actual continuous and peak current rating of the finished battery should be determined according to the cell specification, BMS current rating, nickel/busbar construction, wiring, connectors, thermal management, and controller requirements.
BMS Protection
A suitable 10S NMC BMS can provide:
- Overcharge Protection
- Over-Discharge Protection
- Over-Current Protection
- Short-Circuit Protection
- Cell Voltage Monitoring
- Cell Balancing
- Temperature Monitoring
- Charging & Discharging Protection
The BMS current rating should be selected according to the application’s continuous and peak current requirements.
Applications
The DMEGC 10S 36V 58.5Ah Lithium-Ion Battery Pack is suitable for:
- 36V E-Bikes
- Electric Scooters
- Electric Bicycles
- Electric Tricycles
- Electric Motorcycles
- EV Applications
- Delivery Vehicles
- Robotics
- AGV Systems
- Solar Energy Storage
- ESS Battery Systems
- Portable Power Systems
- Industrial Equipment
Custom OEM Battery Packs
Advantages
- 58.5Ah high-capacity design
- 10S13P configuration
- 130-cell battery configuration
- Approximately 2.106kWh nominal energy
- Suitable for extended-runtime applications
- 36V-class lithium battery system
- DMEGC NMC lithium-ion cell configuration
- Multiple BMS options
- Custom wiring and connector options
- Suitable for OEM and bulk battery manufacturing
Package Includes
1 × DMEGC 10S 36V 58500mAh (58.5Ah) 10S13P 3C Lithium-Ion Rechargeable Battery Pack
