Description

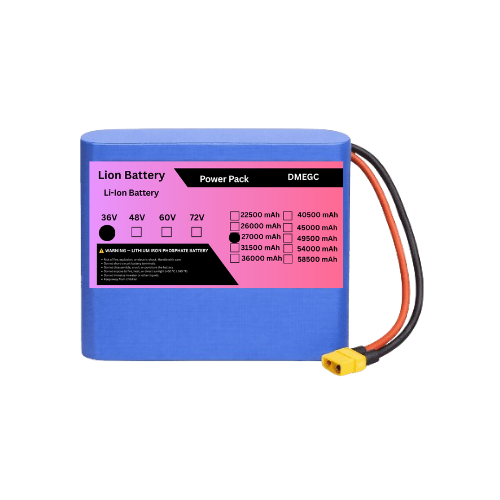

DMEGC 10S 36V 27000mAh 10S6P 3C Lithium-Ion Rechargeable Battery Pack
The DMEGC 10S 36V 27000mAh (27Ah) 10S6P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for applications requiring reliable power, good energy capacity, and extended operating time.
The battery is built in a 10S6P configuration, using 10 series groups with 6 cells connected in parallel in each group. When assembled using 4500mAh DMEGC cells, the pack provides approximately 36V nominal voltage and 27Ah capacity, with approximately 972Wh (0.972kWh) of nominal energy.
It is suitable for e-bikes, electric scooters, electric vehicles, robotics, solar systems, energy storage, industrial equipment, and custom battery applications.
Key Features
- DMEGC Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 10S6P Configuration
- 36V Nominal Voltage
- 27000mAh / 27Ah Capacity
- 60 Cells in 10S6P configuration
- 3C Cell Configuration
- Approximately 972Wh Nominal Energy
- Rechargeable Battery Pack
- High Energy Capacity
- Suitable for Long-Range Applications
- BMS Protection Available
- Custom Connector & Enclosure Options
- Suitable for OEM & Custom Battery Manufacturing
10S6P Battery Configuration
The pack consists of:
10 Series × 6 Parallel = 60 Cells
Each parallel group:
6 × 4500mAh = 27000mAh (27Ah)
Nominal Voltage
10 × 3.6V = 36V
Maximum Charging Voltage
10 × 4.2V = 42V
Nominal Energy
36V × 27Ah = 972Wh
Therefore, the battery provides approximately 972Wh (0.972kWh) of nominal energy.
3C Lithium-Ion Configuration
The 3C specification refers to the discharge capability of the selected cells. With 6 cells connected in parallel, the parallel group provides greater current capability than a single cell.
The actual continuous and peak current rating of the finished battery should be determined according to the cell specifications, BMS current rating, nickel/busbar construction, wiring, connectors, thermal management, and controller requirements.
BMS Protection
A suitable 10S NMC BMS can provide:
- Overcharge Protection
- Over-Discharge Protection
- Over-Current Protection
- Short-Circuit Protection
- Cell Voltage Monitoring
- Cell Balancing
- Temperature Monitoring
- Charging & Discharging Protection
The BMS current rating should be selected according to the application’s continuous and peak current requirements.
Applications
The DMEGC 10S 36V 27Ah Lithium-Ion Battery Pack is suitable for:
- 36V E-Bikes
- Electric Scooters
- Electric Bicycles
- Electric Tricycles
- Electric Motorcycles
- EV Applications
- Delivery Vehicles
- Robotics
- AGV Systems
- Solar Energy Storage
- ESS Battery Systems
- Portable Power Systems
- Industrial Equipment
- Custom OEM Battery Packs
Advantages
- 27Ah high-capacity design
- 10S6P configuration
- 60-cell battery configuration
- Approximately 972Wh nominal energy
- Suitable for extended-runtime applications
- 36V-class lithium battery system
- DMEGC NMC lithium-ion cell configuration
- Multiple BMS options
- Custom wiring and connector options
- Suitable for OEM and bulk battery manufacturing
Package Includes
1 × DMEGC 10S 36V 27000mAh (27Ah) 10S6P 3C Lithium-Ion Rechargeable Battery Pack
