Description

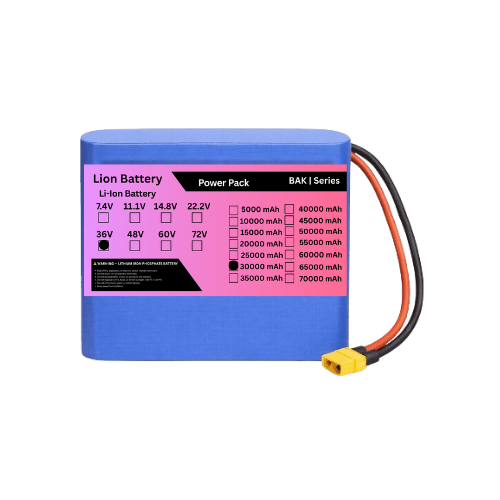

BAK 10S 36V 30000mAh (30Ah) 10S6P 3C Lithium-Ion Rechargeable Battery Pack for E-Bike & Energy Storage
The BAK 10S 36V 30000mAh (30Ah) 10S6P 3C Lithium-Ion Rechargeable Battery Pack is a high-capacity NMC Lithium-Ion battery pack designed for e-bikes, electric scooters, energy storage systems, robotics, portable power systems, and other 36V-class applications.
Built in a 10S6P configuration, the pack contains 60 lithium-ion cells, arranged as 10 series groups with 6 cells connected in parallel in each group. Using approximately 5000mAh cells, the battery provides a total capacity of 30Ah (30,000mAh).
With a typical NMC cell nominal voltage of 3.6V, the pack provides approximately 36V nominal voltage and approximately 1.08kWh nominal energy. The maximum charging voltage is 42V, based on 4.2V per cell.
The battery pack can be configured with a suitable 10S NMC BMS, cell balancing, connectors, wiring, insulation, and protective enclosure according to the application requirements.
Key Features
- BAK Lithium-Ion Cells
- NMC Lithium-Ion Chemistry
- 10S6P Battery Configuration
- 36V-Class Lithium-Ion Battery
- 30000mAh (30Ah) Capacity
- 3C Cell Technology
- Approximately 1.08kWh Nominal Energy
- High Energy Density
- Rechargeable Battery Pack
- Suitable for E-Bikes & Energy Storage
- Optional Standard or Smart BMS
- Bluetooth / CAN / RS485 BMS Options
- Custom Connectors & Wiring Available
- OEM & Custom Battery Pack Manufacturing
Battery Configuration
10S6P = 10 series groups × 6 cells in parallel
- Series: 10S
- Parallel: 6P
- Total Cells: 60
- Capacity: 30Ah
- Nominal Voltage: 36V
- Maximum Charging Voltage: 42V
- Nominal Energy: approximately 1.08kWh
- Battery Class: 36V Lithium-Ion
Applications
This BAK 36V 30Ah battery pack is suitable for:
- 36V E-Bikes
- Electric Scooters
- Electric Bicycles
- Energy Storage Systems
- Portable Power Systems
- Robotics
- AGV & Automation Systems
- Small EV Applications
- Solar Energy Storage
- Backup Power Systems
- Industrial Equipment
- Custom OEM Battery Packs
BMS & Protection
A suitable 10S NMC BMS can be integrated into the battery pack to help provide:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Cell balancing, depending on BMS model
- Temperature monitoring, where supported
The BMS current rating should be selected according to the continuous and peak current requirements of the connected equipment.
Advantages
- High-capacity 30Ah battery
- Reliable BAK NMC cells
- 10S6P configuration
- Approximately 1.08kWh energy
- 36V-class output
- High energy density
- Suitable for e-bike applications
- Suitable for energy storage
- Optional Smart BMS
- Custom wiring and connectors
- OEM and bulk manufacturing available
Package Includes
1 × BAK 10S 36V 30000mAh (30Ah) 10S6P 3C Lithium-Ion Rechargeable Battery Pack
